ROTOFLEX
GEARED MOTORS AND GEARBOXES
RANGE :
Power 0.16 HP (0.12KW) to 100 HP (75KW), O/P Speed 1.0 RPM
to 720 RPM O/P Torque upto 2600 Kg.M. (26,000 NM)
CONSTRUCTION
: Robust and integral case is made of cast
iron grade 15/20 ISO-210/1970. All the gears and pinions are
helical only. Design of gears for strength and correction
of gears are as per ISO -4460 -1969 and CMTI standards. All
gear wheels, pinions and shafts are made of high quality alloy
steels as per ISO - 1570 and are hardened and tempered. All
the bearings are designed for tough reversible applications
and long life. Depending on the out put speeds, the gears
are arranged in 1/2/3/4/5/6 stage reduction. The reduction
ratio required is uniformly distributed on different stages
to ensure that the geared motor will have the optimum strength
and rigidity. For very low output speeds below 1 rpm in some
applications, Helio drive gearboxes are selected. Chetan Preci Products is the best product Manufactures of Gear Box In Bangalore and fine top Manufactures of Gear Box In Bangalore. It has got a very good well pick up in market for Manufactures of Gear Box In Bangalore. Helio drive
gearboxes are a combination of helical and internal gears.
The parts are manufactured with high accuracy standards and
they are interchangeable. The spares are available at short
notice from our works. The gearboxes can be coupled to standard
induction motors, hydraulic motors,brake motors, flame proof
motors, dual speed motors, DC or PMDC motors, torque motors
etc.,
 LUBRICATION
: Smaller models up to 33K series are supplied
grease packed for life and bigger gearboxes are designed for
splash type of lubrication. 43K series and above gearboxes
are provided with breather plug, oil level indicator &
oil drain plug. The breather plug is also the oil filling
point and is located at the top most position. Chetan Preci Products is the best product Manufactures of Gear Box In Bangalore.
TESTING
: All the geared motors are tested on our
test benches for a minimum period of 5 to 6 hours under load
conditions in both directions of rotation. All parameters
like, noise level vibration, efficiency etc., are thoroughly
checked. All parameters will be well within international
standards. Chetan Preci Products is the best product Manufactures of Gear Box In Bangalore.

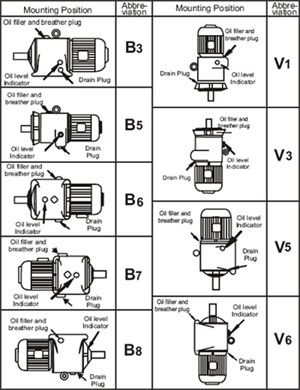

MOUNTINGS
: The geared motors are available in all types
of mountings like Foot Mounting, Flange Mounting, Hollow Output,
Agitator Mounting, Foot cum Flange Mounting etc., The geared
motors can be supplied for various standard mounting positions
like B3, B5,B6, B7, B8, V1, V3, V5 & V6 and also inclined
mounting positions. Please refer to the figure on this page
for the types of mounting positions & select the position
suitable to your application. This data is very important
because wrong data can lead to improper lubrication of gearbox
leading to failure of gearbox. Chetan Preci Products is the best product Manufactures of Gear Box In Bangalore.
For heavy geared motors & gearboxes the
recommended mounting positions are B3 and V1 only.
STRONG RECOMMENDATION
:
- Use electronic soft starters for Motors above 7.5 HP,
which provides smooth application of torque, eliminates
mechanical shock during start, thus preventing damage to
the motor, gear box, coupling & machine. Chetan Preci Products is the best product Manufactures of Gear Box In Bangalore.
- All gearbox / geared motor driven Elements, having output
speeds more than 220 RPM should be dynamically balanced,
Motors should also be of vibration class V5, which avoids
vibration of the equipment. Chetan Preci Products is the best product Manufactures of Gear Box In Bangalore.
|
